Ridge Lights & Ridge Mounts
Ridge Lights
Ridge Lights are designed for installation on an existing curb on a flat roof. The unit consists of a welded aluminum sash with vaulted mullions (if more than one bay), glazing (glass, acrylic, or polycarbonate), and bar caps over the mullions.
Ridge Lights Size Selection
Ridge Lights Ordering Info
Specify the outside dimensions of curb, the preferred glazing material and configuration, hipped or vertical ends, pitch (12/12 is standard), and finish.
Note: The flange-to-flange dimension will be 1/2" to 3/4" larger unless specified otherwise.
You may also request the number of bays. Some limitations do apply. Call for details.
The standard finish is mill. Custom paint may be specified.
Ridge Mounts
Ridge Mounts are designed for installation on an existing curb that straddles a ridge. The unit consists of a welded aluminum sash with vaulted mullions (if more than one bay), glazing (glass, acrylic or polycarbonate), and bar caps over the mullions.

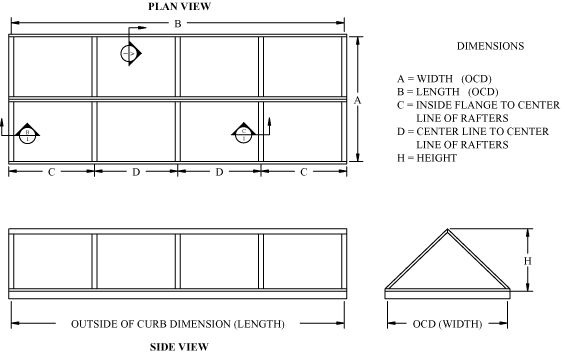

Ridge Mounts Size Selection
_gif.gif)
Ridge Mounts Ordering Info
Specify the outside dimension of curb (down slope x down slope x length parallel to ridge), the slope, the preferred glazing material and configuration, and finish.
Note: The flange-to-flange dimension will be 1/2" to 3/4" larger unless specified otherwise.
You may also request the number of bays. Some limitations do apply. Call for details.
The standard finish is mill. Custom paint may be specified.
Models
-
RLRidge Light
-
RMRidge Mount
