BARREL VAULTS

barrel vault 1.jpg

Barrel vaults are designed for installation on an existing curb on a flat roof. The unit consists of a welded aluminum sash with arched mullions, acrylic or polycarbonate glazing, and bar caps over the mullions.

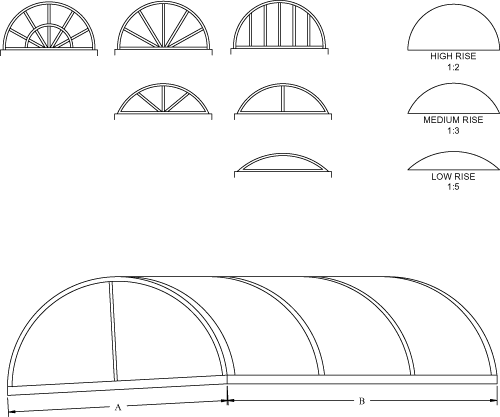

Standard Profiles


Ordering Info

​

Specify the outside dimension of curb, the rise, the preferred glazing material and configuration, and finish.

Note: The flange-to-flange dimension of the curb mount will be 1/2" larger than the outside dimension of the curb unless specified otherwise.

​

You may also request the number of bays. Some limitations do apply. Call for details.

The standard finish is mill. Custom paint may be specified.

​

​

Models

​

  • BVBarrel Vault – Medium Rise (standard)

  • BV-HRBarrel Vault – Half Round (High Rise)

  • BV-LRBarrel Vault – Low Rise

​

​
